Hi all,
I thought I would share my case with the community, it is a variation on a theme but it has worked well in the few tests I have done.

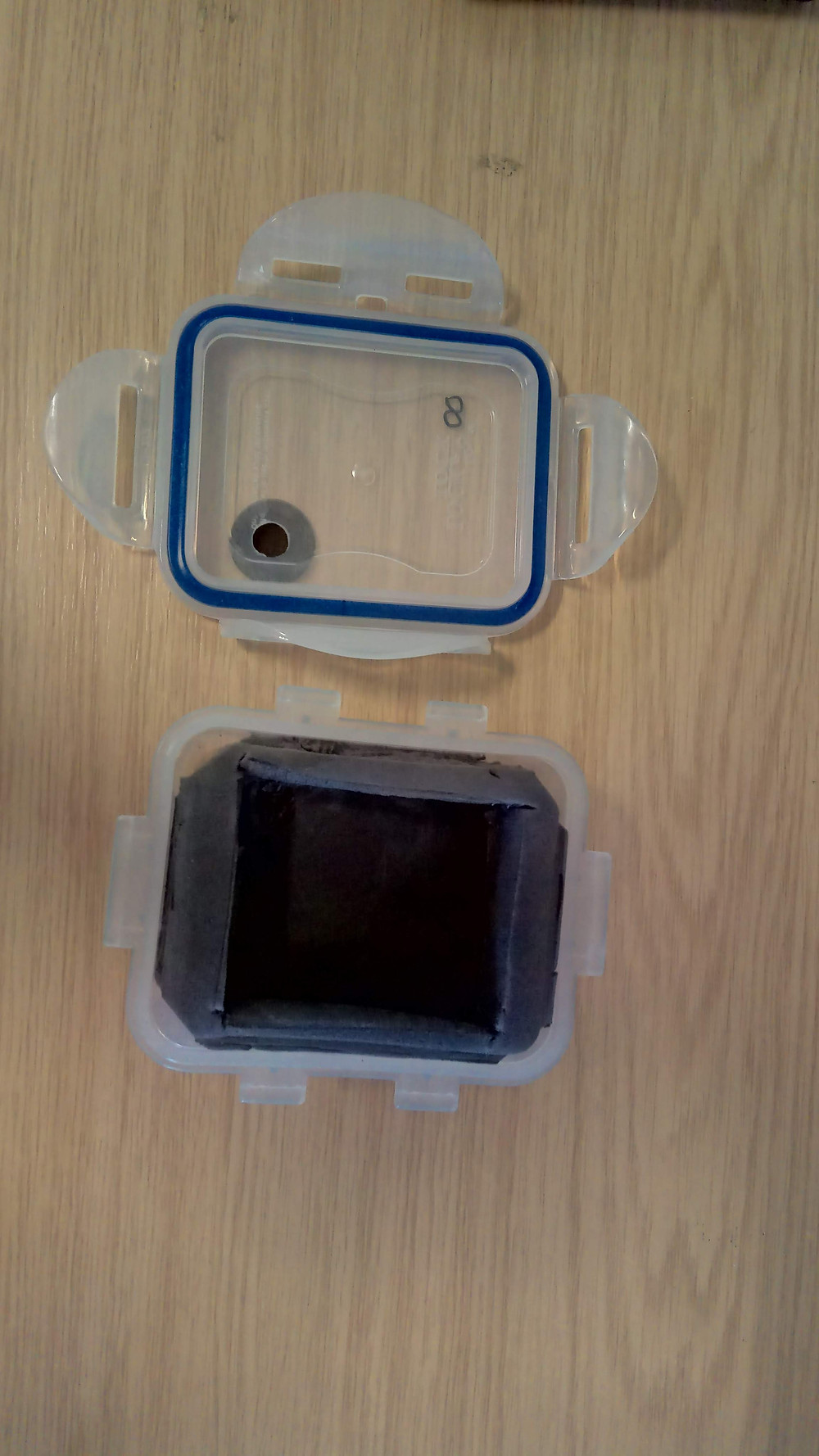

The case is a Lock & Lock rectangular 180ml container (HPL805):
http://www.reallyusefulproducts.co.uk/uk/html/onlineshop/locklock/rec_hpl805.php
The inner foam housing is 2 layers of EFP30 Polyethylene closed cell foam sheets 20mm thickness. One is supporting the AudioMoth the other is cut to fit the AudioMoth inside :
https://www.easyfoam.co.uk/closed-cell-polyethylene-foam.php
Then over the hole drilled for the microphone I have used Buzzer Waterproof Acoustic Membranes brought on Alibaba:
The box remained watertight under a tap at full strength, focused directly on the acoustic membrane, so I am hoping rain at an angle won't pose too much of an issue. Only thing I am a bit nervous about is the glue holding the membrane, if it will withstand tropical humidity. I will keep everyone updated.
Cheers
You inspired me...
See my apparatus that I used my micromoth: https://www.openacousticdevices.info/support/enclosures/anyone-used-the-audiomoth-devices-inside-in-crocodilian-nest-mound-or-sand
Hi Thomas, any updates on the effectiveness of the buzzer acoustic membranes? Did humidity cause any issues?
Have you noticed a "clicking" sound on your recordings at lower frequencies (~5-30kHz) with the AudioMoth inside the case? See here for why I ask - https://www.openacousticdevices.info/support/main/comment/5dce2a2732c0dc00170ca837
